Drive Shaft

Core Advantage
1. Efficient power transmission: The drive shaft serves as the "power highway" connecting the gearbox and drive axle, capable of stably transmitting torque up to several thousand newton-meters to ensure continuous power output.
2. Adaptability to complex operating conditions: The universal joint design ensures stable power transmission of the drive shaft even during dynamic suspension compression (axle spacing variation within ±50mm).

Key application scenarios
• Rear-wheel-drive models: such as the BMW 5 Series and Mercedes-Benz E-Class, which utilize an integral drive shaft to connect the transmission with the rear axle.
• Four-wheel drive system: A multi-link transmission network is established between the transfer case and front/rear axles to enable intelligent power distribution.

• New energy vehicles: Designed to meet high-torque motor requirements, with some models featuring speed-regulated transmission systems that achieve over 98% efficiency.


Critical Material Selection

Material Type Representative Steel Grade Properties and Application Scenarios
Carbon Steel 45# Low cost, good machinability, widely used in general drive shafts and tubes.
Alloy Steel 40Cr, 42CrMo High strength, good hardenability, suitable for cross shafts and spline shafts under heavy loads.
High-strength Alloy Steel 20MnVB, 16MnCr5 Used in universal joint components; after carburizing and quenching, the surface hardness reaches HRC58-62.
Aluminum Alloy -- 58% lighter than steel, used in mid-to-high-end vehicles seeking lightweight construction.
Carbon Fiber Composite Materials PEEK with carbon fiber 40%-95% weight reduction, used in high-performance vehicles, but with higher cost.


Core Production Process
1. Material preparation: Select cold-drawn seamless steel pipes or alloy steel bars as blanks to ensure uniform microstructure.
2. Mechanical processing:
● Shaft tube: CNC lathe is used for outer diameter and end face machining, ensuring straightness ≤0.5mm/m.
● Flower key: Machined using rolling cutting method with tooth profile error ≤0.01mm, surface finish enhanced through cold stamping.
3. Heat treatment:
● The tempering treatment enhances the overall mechanical properties;
● Surface quenching (e.g., high-frequency induction quenching) achieves an HRC58-62 hardness for the journal, enhancing wear resistance.
4. Assembly and Testing:
● Laser alignment of universal joints with phase error ≤5°;
● Dynamic balance debugging, with residual imbalance ≤30g·cm;
The sealing test achieves an IP67 protection rating with 900-hour salt spray resistance.

  • NA01-25-100 is the front drive shaft assembly of the Mazda Proceed model. Its main function is to transfer engine power to the front driving wheels, and it is a core component of the vehicle's transmission system. As an original factory specification part, it is specifically designed for the 1996 Mazda Proceed Kd-Uvl6r model to ensure efficient power transmission and driving stability.

    View Products
  • 94713109 is the transmission shaft for the Chevrolet S10 model. Its main function is to transfer engine power to the driving wheels, ensuring the vehicle can move normally. As an original factory replacement part, it is highly compatible with the model and offers an economical repair option.

    View Products

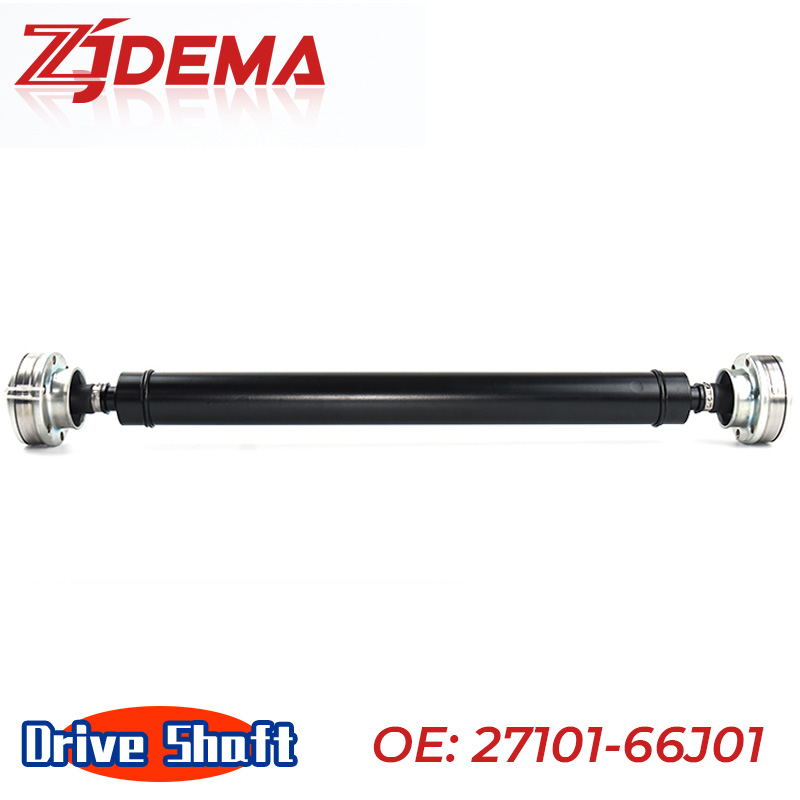

  • 27101-66J01 is the drive shaft that is compatible with Suzuki Davitara II (models from 2005 and later)

    Basic Description and Application
    It belongs to the automotive drive shaft (also known as the universal joint or propeller drive shaft). Its main function is to connect the front and rear axles of the vehicle, and transfer power through the rotating shaft. It is suitable for Suzuki Vitara Escudo and Suzuki Vitara II (models from 2005 and later). It is a core component of the chassis transmission system.

    View Products
About Us
Zhejiang Demai Machinery Co., Ltd.

Zhejiang Demai Machinery Co., Ltd. was established in 2019, with its predecessor being Ruian Tieliu Transmission Machinery Co., Ltd., founded in 2002. The company occupies a production area of 12,000 square meters. Demai specializes in the production of drive shaft assemblies and their components, steering shafts, steering joints, universal joints, and other products. We are a professional manufacturing enterprise integrating R&D, production, sales, and service.

Our company has passed the IATF 16949:2016 quality management system certification and places great emphasis on the long-term effective operation of this system.

Demai possesses strong R&D capabilities, developing 20 to 35 new products each year. We are committed to shortening development cycles and increasing development volume to meet the needs of both new and existing customers, helping our customers become more competitive in the market.

We are equipped with advanced production and testing facilities, and invest annually in the latest technology and equipment to ensure high product quality and full compliance with customer requirements.

At present, our products are exported to regions such as South America, North America, and the Middle East, where they are well received by customers due to their excellent quality. In addition to the aftermarket, we are also involved in OEM business, serving manufacturers of passenger cars, agricultural vehicles, sanitation vehicles, snowplows, ATVs, and more. Demai will continue to strive to provide high-quality services to our customers. We offer timely responses, fast order confirmation, and responsible after-sales service.

Our business philosophy is: “Credibility First, Quality First, Efficiency First, Service First.” What you need is what we can provide. We sincerely welcome your inquiries!
